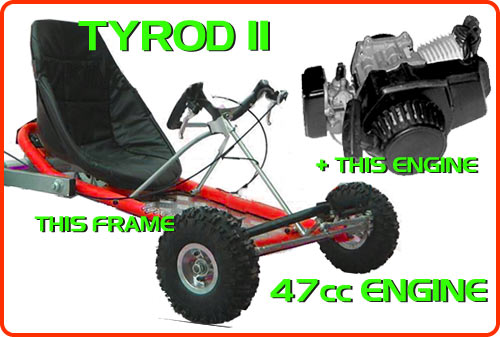

If Your Kart Looks Like The 47cc Ty Rod II Kart To The Left
AND Your Pull Start Looks Like The Image On The Right
Then You Are In The Right Place!

ORIGINAL PARTS FOR 47cc Ty Rod II


Air Filter Assembly - Air Filter with foam insert and choke plate
$24
Axle - Rear Axle -
$14
na
Bearings - High Speed Wheel Bearings (1 pair)
$16
Brake Cable - Brake Cable for models using a single brake cable to a single rear caliper
$19
Brake Cable - Brake Cable for models using 3 cables, one long and two short - only short cables are available ( the long cable that goes to a splitter/ carrier is not available)
$12
Brake Caliper - w/ Pads type CW
$24
Brake Caliper - w/ Pads Type CCW
$24
Brake Handle - Left Hand Brake Handle - clamp on style - long handle (about 4" long)
$21
Brake Handle - bolt thru style - short lever with single bolt holding the assembly to the bar
$39
Brake Pads - Disk Brake Pad Pair - U shaped w/ center groove $12
Brake Pads - Disk Brake Pad Pair - Rectangle Shaped w/ rounded corners and center groove $12
Carburetor - Stock Chinese 47cc Ty Rod II Carburetor - this carburetor does not have a primer bulb (pull start uses 3 mounting bolts)- see Performance For Better Quality Carburetors
$38
Carburetor - Stock Chinese 36cc Ty Rod II Carburetor - this carburetor has a primer bulb (for engines with a pull start using 4 mounting bolts)- see Performance For Better Quality Carburetors
$38
Carburetor Repair Kit - - na na
Carburetor Parts - na na
Chain #25 - 3 ft Chain - w/ Master Link
$17
Chain Master Link #25 - Two Master Links
$7
Chain 8mm - 3 ft Chain w/ Master Link - 8mm from tooth tip to tooth tip
$28
Chain Master Link 8mm - Two Master Links
$7
Clutch - 3 Shoe Clutch and Spring Assembly
$33
Clutch Drum - 47cc Ty Rod II Clutch Bell
$26
Cylinder 47cc Ty Rod II Engine Cylinder
$33
Engine 36cc - Vertical cylinder engine (not pictured above) Complete Engine w/ Intake - Exhaust & Clutch Pads and 4 bolt pull start - Bolt It On And Go! Does not include transmission.
$139
n/a
Engine 36cc - Vertical cylinder engine (not pictured above) Complete Engine w/ Intake - Exhaust & Clutch Pads & 4 bolt pull start and transmission (8mm sprocket included) - Bolt It On And Go! .
$185
n/a
Engine 47cc - Complete 47cc Ty Rod II 47cc Engine w/ Intake - Exhaust & Clutch Pads (pictured above)- Bolt It On And Go! Does not include transmission.
NOTE: This will not fit in place of the 36cc engine without modifying your engine mounts. If you have a pull start with 4 mounting bolts it is a 36cc engine.
$155
na
Engine 49cc - Vertical cylinder engine (not pictured above) Complete Engine w/ Intake - Exhaust & Clutch Pads and 4 bolt pull start - Kart frame modification required for this engine to bolt up, it is bigger! Does not include transmission.
$179
Gas Tank - tank with lines - side mount w/ two vertical bolts and gas located cap at one end
$28
Gas Tank - tank with lines - round type with 3 mount tabs - gas cap located at top off center
$36
Gas Tank - tank with lines - cube type with mount tab on each end
$29
Ignition Coil - Spark Plug Coil & Wire Assembly
$22
na
Intake Manifold - Carburetor mount
$18
kill switch - kill switch, single wire type, mounts into hole on steering wheel
$6
Mixing Bottle -Oil/Gasoline
$12
na
Piston - 47cc
$26
Piston Rings (pair)
$15
Piston & Rings - 47cc
$38
Pull Start - Complete Recoil Pull Start Assembly for your 47cc Ty Rod II Kart w/ Pull Rope Installed - for 47cc w/ reed valve ( 3 mounting hole version)
$36
Pull Start Pawl for 47cc - - Round Pawl - This Is the Part Inside The Pull Start Assembly That Ratchets In and Out ( for 3 mounting hole pull start)
$12
Pull Start - Complete Recoil Pull Start Assembly for your Ty Rod II 36cc/43cc Kart w/ Pull Rope Installed - ( 4 mounting hole version)
$36
Pull Start Pawl for 36cc/43cc - - Oblong Pawl - This Is the Part Inside The Pull Start Assembly with the flipper / catch ( for 4 mounting hole pull start)
$12
SEAT - aftermarket seat hard plastic, may require minor modifications to mount.
$48
na
Spark Plug - NGK / Champion -Two Pack
$8
Spindle - Front Wheel Axle - Left & Right Pair - Connects the Wheel sTo The Frame And Tie Rod II -
$48
na
Sprocket - Engine / Transmission Sprocket
$21
Sprocket - For Axle/Wheel na na
Steering Wheel
3 Bolt mount steering wheel
$30
na
Steering wheel - with Brake + Throttle Levers 3 Bolt mount steering wheel and levers
$55
Throttle Cable
$21
Throttle - Aftermarket Throttle, Clamp on type for use with round bar steering wheels - NOTE: must have bare metal rod to clamp to. if you have a round bar with padding the padding will need to be cut away
$22
Throttle - Aftermarket Throttle, bolt through handle bar type, Used with both bare and padded ( flat metal and tube type) handle bars - Note: must have a bolt hole through the bar to mount
$39
Tie Rod II - Pair (left & right tie rod) - na
na
Tire Tube - Ty Rod II Inner Tube
$12
Tire - 47cc Ty Rod II Off Road Tread Tire
$23
Tire - 47cc Ty Rod II Street Tread Tire
$21
Transmission w/sprocket
$38
Wheel - - unavailable - please try azusaeng.com for the nearest fit we could find na na

Have You Seen A Cool Part For The 47cc Ty Rod II Super Pocket Kart At Another Website That We Don't Have?
- Let Us Know -
If We Agree With You We Will Give You A Nice Discount On It When You Order It From Us!
